ぽけこん on ラズベリーパイ導入手順

はじめにPoke-Controller on Raspberry Piを導入にあたって

Poke-Controllerをラズベリーパイで動作させることのメリットとデメリットについて

メリット

動作電力の削減

機器接続環境の簡略化

SDカードの交換による使用用途によってのOSの切り替えが簡単


デメリット

実際に動かす自動化pythonプログラムはWindows環境で作成されている場合が多いため、

動作にあたって入手した自動化ファイルの修正が必要になる可能性がある。

導入にあたってlinuxの操作、OSの知識などが必要になる。

本手順ではlinuxについての知識があるものとして説明は省くものとする。

本環境で使用する機器について

RasberryPiOS導入するためのWindowsコンピュータ(teratermのscpにて各種ファイルの転送などを実施)

HDMI付きのテレビ

Nintendo Switch

Raspberry Pi 4B 4GBメモリー版  ¥15,000位 ※現在半導体不足で価格高騰中の為、RaspberryPi400を推奨

ラズベリーパイにつなぐUSBマウス、USBキーボード ¥2,000位 ※RaspberryPi400ならばキーボード不要

MicroSDHCカード 16GB ¥500位

ジャンパーワイヤ  ♀♂2本 ¥400位(束で購入可♂♂があるとマイコンのショートに便利、♀♀もあると便利)

ブレッドボード          ¥400位

中華キャプチャーボード      ¥800位

マイコン(pro micro Atmega32U4)¥1800位

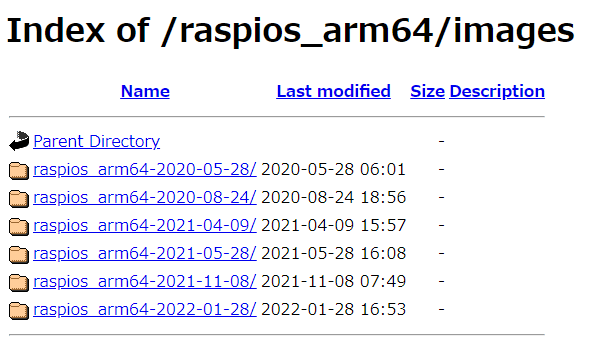

raspiOSのダウンロード

OPENCVが64bit対応なため、64bit版のraspiOSをダウンロードします。

2024/09/04 更新
raspios 6.6.31-1+rpt1 (2024-05-29) aarch64 版で更新
2024/09/04時点での手順になりますので、最新のOSのアップデートにより手順が古くなり同じコマンドなどが実行できなくなっている可能性がありますがご了承ください

raspiOSのインストールツールのダウンロード

Raspberry Pi Imagerを使用し、WindowsOSでraspiOSをインストールします。

https://www.raspberrypi.com/software/


WindowsのスタートメニューからRaspberry Pi Imagerを起動します。

CHOOSE OSボタンを押し、Use customからダウンロードした64bit版の

Raspberry Pi Imagerの64bit版のraspiOSを選択します。

(ダウンロードしたzipファイルのまま選択可能)

CHOOSE STORAGE ボタンを押し、インストール対象のmicroSDHCカードを選択します。

※sdカードは初期化されますので、書き込む場合は必ずsdカードが正しいことを確認してください。

※間違えて大事なファイル等が削除された場合、一切責任を取りませんのでご了承ください。

WRITEボタンを押し、microSDHCカードにRaspiOSをインストールします。

容量にもよりますが、インストールには30分程度かかります。

※完了後、フォーマットしますかとのポップアップが表示されますが、いいえを選択してください。


WindowsからSDカードを取り外し、raspberry piにSDカードを差し込みます。

RasberryPiのHDMIをテレビに接続

RasberryPiのUSBにキーボード、マウス、キャプチャーボードの接続

RasberryPiOSの起動とネットワークの設定の実施

※自分の家の環境に設定してください。


raspiコンフィグにて初期設定

sudo raspi-config

1.3 パスワードの設定 piユーザーのパスワードの設定

1.4 ホスト名の変更 ご希望のホスト名

3.2 sshの有効化 yes

3.6 over serial no

serial port hardware enable yes

Finishにて再起動の実施

config.txtの編集

sudo nano /boot/config.txt

末尾に下記内容を追加してシリアルポートの有効化とBuleToothの停止

[all]

enable_uart=1

dtoverlay=pi3-disable-bt


パッケージリストの更新

sudo apt-get update


ポケコン用Python環境の導入

RasberryPiOSにはインストール後にPythonが導入されていますのでpipコマンドにてパッケージを追加していきます。

2024/09/04更新
OSのPythonからpipで導入できなくなったため、venv環境にて導入します

venvの作成
mkdir ~/pokecon
python3 -m venv pokecon
source ~/pokecon/bin/activate
deactivate
コマンド
source ~/pokecon/bin/activate
pip install numpy
pip install opencv-python
pip install pynput
pip install pipenv
deactivate
コンソールの再起動
source ~/pokecon/bin/activate
pipenv install pyserial
pip install Pillow
deactivate
sudo apt install python3-pil.imagetk

下記パッケージは用途によって導入します。

ポケコンModified verの場合
source ~/pokecon/bin/activate
pip install pygubu
pip install pandas
pip install scipy
deactivate

OCRを使用する場合tesseract-OCR

sudo apt install tesseract-ocr
source ~/pokecon/bin/activate
pip install tesseract
pip install pyocr
deactivate
LINE Notifyを使用する場合
source ~/pokecon/bin/activate
pip install requests
deactivate
ポケコンの起動
source ~/pokecon/bin/activate
cd ~/Poke-Controller-Modified/SerialController/
python Window.py


コマンド

pip install numpy

pip install opencv-python

pip install pynputl

pip install pipenv

exit

コンソールの再起動

pipenv install pyserial

pip install Pillow

sudo apt install python3-pil.imagetk


下記パッケージは用途によって導入します。

ポケコンModified verの場合

pip install pygubu

pip install pandas

pip install scipy


OCRを使用する場合

tesseract-OCR

sudo apt install tesseract-ocr

pip install tesseract

pip install pyocr

pip install pyocr.builder


LINE Notifyを使用する場合

pip install requests

Poke-Controllerのダウンロード ホームディレクトリに解凍

unzip Poke-Controller.zip

本家

https://github.com/KawaSwitch/Poke-Controller

Modified版

https://github.com/Moi-poke/Poke-Controller-Modified

lufaのダウンロード

https://github.com/abcminiuser/lufa

解凍するとlufa-masterフォルダができるので

lufaに名前変更してPoke-Controllerフォルダ配下のlufaフォルダに上書き保存。


ArduinoIDEのダウンロード ホームディレクトリに解凍

https://www.arduino.cc/en/software

tar xvf arduino-1.8.19-linuxaarch64.tar.xz

マイコンハードウェア情報の編集

nano ~/arduino-1.8.19/hardware/arduino/avr/boards.txt

285 leonardo.vid.1=0x2341

286 leonardo.pid.1=0x8036

285行目:leonardo.vid.1=0x0f0d

286行目:leonardo.pid.1=0x0092


311 leonardo.build.vid=0x2341

312 leonardo.build.pid=0x8036

311行目:leonardo.build.vid=0x0f0d

312行目:leonardo.build.pid=0x0092


LeonardoのMCUに変更

nano ~/Poke-Controller-Modified/makefile

14 MCU = atmega16u2

14 MCU = atmega32u4

Leonardo用hexファイルの作成とマイコンへの書き込み

export PATH=$PATH:/home/pi/arduino-1.8.19/hardware/tools/avr/bin

cd ~/Poke-Controller

make clean

make

makeしたhexファイルをArduino Leonardoに書き込み

ArduinoLeonardoをリセット(RSTとGNDをショートさせる)

 以下ここから、以上までをコピー&ペーストして実行------

ARDUINO_UPLOAD_PORT="$(find /dev/ttyACM* | head -n 1)"

stty -f "${ARDUINO_UPLOAD_PORT}" 1200

while :; do

sleep 0.5

[ -c "${ARDUINO_UPLOAD_PORT}" ] && break

done

avrdude -C /home/pi/arduino-1.8.19/hardware/tools/avr/etc/avrdude.conf -v -patmega32u4 -cavr109 -P"${ARDUINO_UPLOAD_PORT}" -b57600 -D -V -Uflash:w:/home/pi/Poke-Controller/Joystick.hex:i

 以上---------------------------------------


ラズベリーパイGPIOとマイコンの接続

ジャンパーワイヤーにて接続します。

GND⇔GND

TXD⇒RXD

※今環境はGPIOと直接マイコンを接続するためシリアルアダプタは使用しません

※GPIOの接続は間違えた場合最悪基盤が壊れる可能性がありますので正しい場所を結線してください。

※必ず電源を停止した状態で、自己責任の下で行ってください。

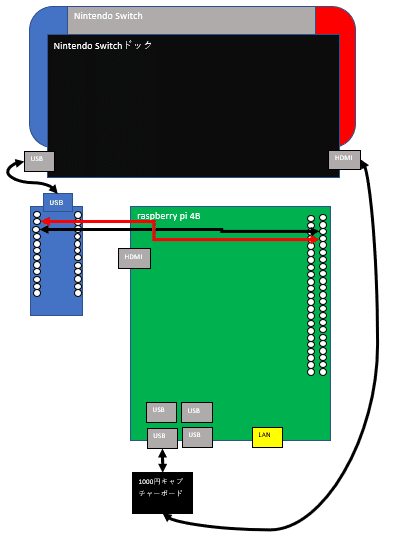

ラズベリーパイとマイコンとスイッチの接続図

ラズベリーパイに中華キャプチャーボードを接続したときは特にドライバは必要ありませんでした。(USB2.0のポートに接続しないと認識しませんでした。)

Poke-Controllerのシリアル接続情報の書き換え

USB→AMAに変更


nano ~/Poke-Controller-Modified/SerialController/Commands/Sender.py

print('connecting to ' + "/dev/ttyUSB" + str(portNum))

print('connecting to ' + os.name + "/dev/ttyAMA" + str(portNum))


self.ser = serial.Serial("/dev/ttyUSB" + str(portNum), 9600)

self.ser = serial.Serial("/dev/ttyAMA" + str(portNum), 9600)


Poke-Controllerの起動
source ~/pokecon/bin/activate

cd ~/Poke-Controller-Modified/SerialController/

python Window.py

OPENCVのバージョンの問題か、画像認識時に読み込み失敗エラーが発生するため下記のとおり変更する。

2024/09/04更新
ゆう様の検証により下記の原因が判明したためModified3.0.2.6.2版のみ確認済みですが、Camera.pyとGuiAsset.pyのパッチを適用することによりreadFrameにて失敗することがなくなったため速度の改善が図られました

下記引用
・Poke-Controller-ModifiedのCamera.pyにてcv2のread()関数を実行するだけのスレッドを作り、Lockモジュールを利用したスレッドセーフな画像データの受け渡しをreadFrame()関数にて実現、他スレッドに対して画像データの受け渡しを全てreadFrame()に統一
・MS2109のキャプボはYUYVの圧縮方式だと、ポケコン内部の解像度(1280x720)ではキャプボの画像更新が10fpsでしか行われないため、画質は少し落ちるが、圧縮方式をMJPGに変更して60fpsの画像更新を実現(fpsや圧縮方式、バッファサイズの変更するためにVideoCaptureの第二引数にcv2.CAP_V4L2を指定)、キャプボごとにself.camera.setの設定は見直すことを推奨
捕捉
・一応、本パッチの適用してジュナリ様のテラレイド逃げて自動色厳選やフウ様のウッウロボ乱数自動化プログラムがそれなりに動いていることは確認できました。
・圧縮方式をMJPGに変更したので、OCRの解析精度や画像の検出精度が下がる可能性はご留意ください。
・複数スレッドでcv2のread()関数が正常に行われない問題はRaspberry Pi4Bでのみ確認しており、
他OSや他端末で本パッチが有益になるかは未検証(メインの画像描画やコマンドの実行スレッドが少なからず高速化するとは思いますが)です。
・あくまで本パッチはPoke-Controller-Modified用です。
 Poke-ControllerやPoke-Controller-Modified-Extensionで適用可能かは未検証です。

ゆう様よりパッチファイルの提供と補足

PythonCommandBase.pyの編集

nano ~/Poke-Controller-Modified/SerialController/Commands/PythonCommandBase.py

# Read a current image

src = self.camera.readFrame()

src = cv2.cvtColor(src, cv2.COLOR_BGR2GRAY) if use_gray else src

src = src[area[2]:area[3], area[0]:area[1]] if not area else src # trim

# Read a template image

template = cv2.imread(TEMPLATE_PATH+template_path, cv2.IMREAD_GRAYSCALE if use_gray else cv2.IMREAD_COLOR)

template = template[tmp_area[2]:tmp_area[3], tmp_area[0]:tmp_area[1]] # trim

w, h = template.shape[1], template.shape[0]

# Read a current image

while True:

src = self.camera.readFrame()

if src is not None:

break

else:

continue
src = cv2.cvtColor(src, cv2.COLOR_BGR2GRAY) if use_gray else src

src = src[area[2]:area[3], area[0]:area[1]] if area else src # trim

# Read a template image

template = cv2.imread(TEMPLATE_PATH + template_path, cv2.IMREAD_GRAYSCALE if use_gray else cv2.IMREAD_COLOR)

template = template[tmp_area[2]:tmp_area[3], tmp_area[0]:tmp_area[1]] # trim

w, h = template.shape[1], template.shape[0]

# Read a current image

while True:

src = self.camera.readFrame()

if src is not None:

break

else:

continue
src = cv2.cvtColor(src, cv2.COLOR_BGR2GRAY) if use_gray else src

src = src[area[2]:area[3], area[0]:area[1]] if area else src # trim

# Read a template image

template = cv2.imread(TEMPLATE_PATH + template_path, cv2.IMREAD_GRAYSCALE if use_gray else cv2.IMREAD_COLOR)

template = template[tmp_area[2]:tmp_area[3], tmp_area[0]:tmp_area[1]] # trim

w, h = template.shape[1], template.shape[0]

2024/9/4 更新 ゆう様よりいただいたパッチ内容の引用
Modified3.0.2.6.2版のみCamera_thread.patchファイルでの提供


sudo apt install git
cp -p ~/Camera_thread.patch ~/Poke-Controller-Modified/
 #現行ファイルのバックアップ
cp -p ~/Poke-Controller-Modified/SerialController/Camera.py ~/Poke-Controller-Modified/SerialController/Camera.py.org
cp -p ~/Poke-Controller-Modified/SerialController/GuiAssets.py ~/Poke-Controller-Modified/SerialController/GuiAssets.py.org
 #パッチファイルの移動とファイル確認
cd ~/Poke-Controller-Modified/
ls -l *.patch #実行結果
-rw-r--r-- 1 pi pi  5712 Sep  3 18:11 Camera_thread.patch
 #パッチファイルの適用
patch -p0 --binary < ./Camera_thread.patch
 #実行結果
.patchpatching file SerialController/Camera.py
Hunk #2  succeeded at 44 (offset -19 lines).
Hunk #3  succeeded at 77 (offset -19 lines).
Hunk #4  succeeded at 96 (offset -19 lines).
Hunk #5  succeeded at 114 with fuzz 2 (offset -19 lines).
Hunk #6  succeeded at 148 (offset -20 lines).
patching file SerialController/GuiAssets.py
