本題
そもそも、Overlayとは何ぞ?
マップビューには直線以外の円や多角形も描くことができる機能
みたいだね🤔
使う時があるのか?🤔
とりあえず、レッツゴ🕺

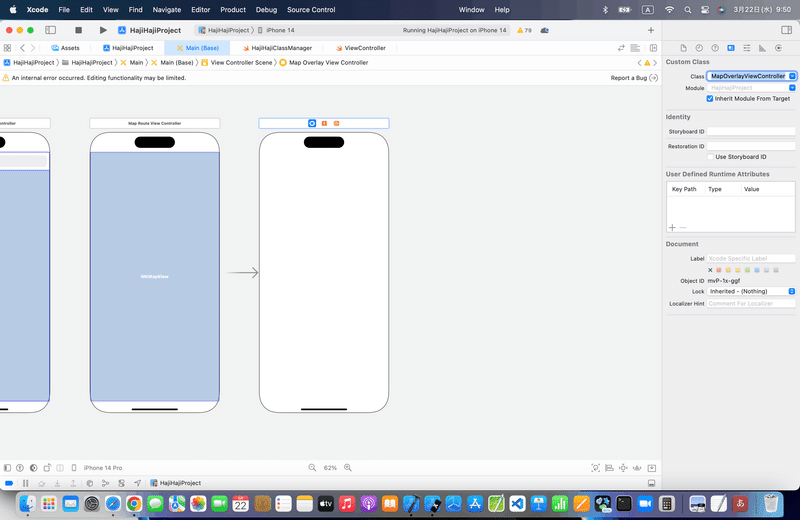

⒈いつもどおり、MapKitを配置して、アウトレット接続
⒉Long Press Gestureをアクション接続
⒊コードを組み込む
//
// ViewController.swift
//
import UIKit
import MapKit
class ViewController: UIViewController,MKMapViewDelegate{
@IBOutlet weak var testMapView: MKMapView!
//ピンのリスト
var coordinateList = [CLLocationCoordinate2D]()
//最初からあるメソッド
override func viewDidLoad() {
super.viewDidLoad()
//デリゲート先を自分に設定する。
testMapView.delegate = self
//中心座標
let center = CLLocationCoordinate2DMake(35.690553, 139.699579)
//表示範囲
let span = MKCoordinateSpanMake(0.005, 0.005)
//中心座標と表示範囲をマップに登録する。
let region = MKCoordinateRegionMake(center, span)
testMapView.setRegion(region, animated:true)
}
//マップビュー長押し時の呼び出しメソッド
@IBAction func pressMap(sender: UILongPressGestureRecognizer) {
//マップビュー内のタップした位置を取得する。
let location:CGPoint = sender.locationInView(testMapView)
if (sender.state == UIGestureRecognizerState.Ended){
//タップした位置を緯度、経度の座標に変換する。
let mapPoint:CLLocationCoordinate2D = testMapView.convertPoint(location, toCoordinateFromView: testMapView)
//ピンを作成してマップビューに追加する。
let annotation = MKPointAnnotation()
annotation.coordinate = CLLocationCoordinate2DMake(mapPoint.latitude, mapPoint.longitude)
testMapView.addAnnotation(annotation)
//追加したピンをリストに追加する。
coordinateList.append(CLLocationCoordinate2D(latitude: mapPoint.latitude, longitude: mapPoint.longitude))
}
}
//ピンタップ時の呼び出しメソッド
func mapView(mapView: MKMapView, didSelectAnnotationView view: MKAnnotationView) {
//ピンの数で場合分け
if(coordinateList.count == 1) {
//ピンを中心に半径100mの円をマップビューに追加する。
let overlay = MKCircle(centerCoordinate: CLLocationCoordinate2D(latitude:coordinateList[0].latitude, longitude: coordinateList[0].longitude), radius:100)
testMapView.addOverlay(overlay)
} else if(coordinateList.count == 2) {
//2点間の中心座標を求める。
let centerX = (coordinateList[0].longitude + coordinateList[1].longitude)/2
let centerY = (coordinateList[0].latitude + coordinateList[1].latitude)/2
//2点間の距離から円の半径を求める。
let aaa:CLLocation = CLLocation(latitude: coordinateList[0].latitude, longitude: coordinateList[0].longitude)
let bbb:CLLocation = CLLocation(latitude: coordinateList[1].latitude, longitude: coordinateList[1].longitude)
let radius = aaa.distanceFromLocation(bbb)/2
//2点間の直線を直径とした縁をマップビューに追加する。
let overlay = MKCircle(centerCoordinate: CLLocationCoordinate2D(latitude: centerY, longitude: centerX), radius:radius)
testMapView.addOverlay(overlay)
} else {
//ピンを頂点にした多角形をマップビューに追加する。
let overlay = MKPolygon(coordinates: &coordinateList, count: coordinateList.count)
testMapView.addOverlay(overlay)
}
}
//描画前の呼び出しメソッド
func mapView(mapView: MKMapView, rendererForOverlay overlay: MKOverlay) -> MKOverlayRenderer {
//円と多角形の場合でインスタンスのクラスを分ける。
let renderer:MKOverlayPathRenderer
if overlay is MKCircle {
renderer = MKCircleRenderer(overlay:overlay)
} else {
renderer = MKPolygonRenderer(overlay:overlay)
}
//図形の色をランダム生成する。
renderer.fillColor = UIColor(red: CGFloat(drand48()),
green: CGFloat(drand48()),
blue: CGFloat(drand48()),
alpha: 0.5)
//ピンのリストをすべて削除する。
coordinateList.removeAll()
return renderer;
}
}

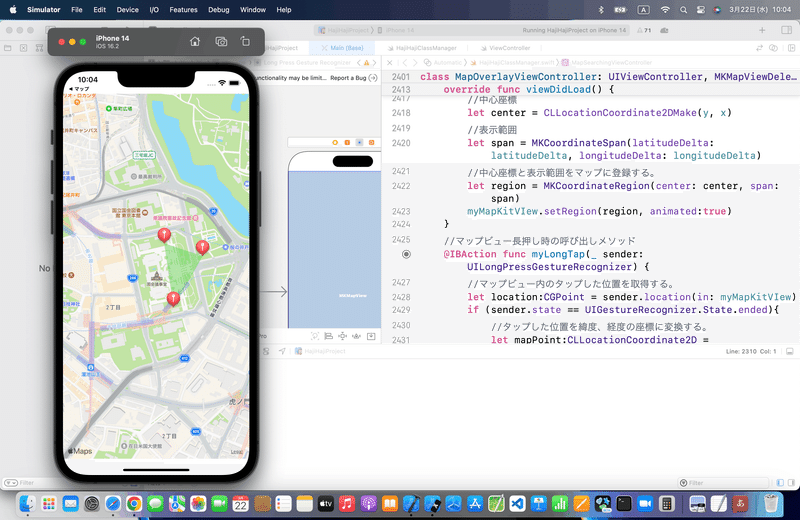

を参考に、コードを書き換えて実行〜〜〜🕺
以下のコードを追加
//アノテーションビューを返すメソッド
func mapView(_ mapView: MKMapView, viewFor annotation: MKAnnotation) -> MKAnnotationView? {
let myView = MKPinAnnotationView(annotation: annotation, reuseIdentifier: nil)
//吹き出しを表示可能にする。
myView.canShowCallout = true
return myView
}
何に使うんだろうと、冒頭で思ってたけど、、、

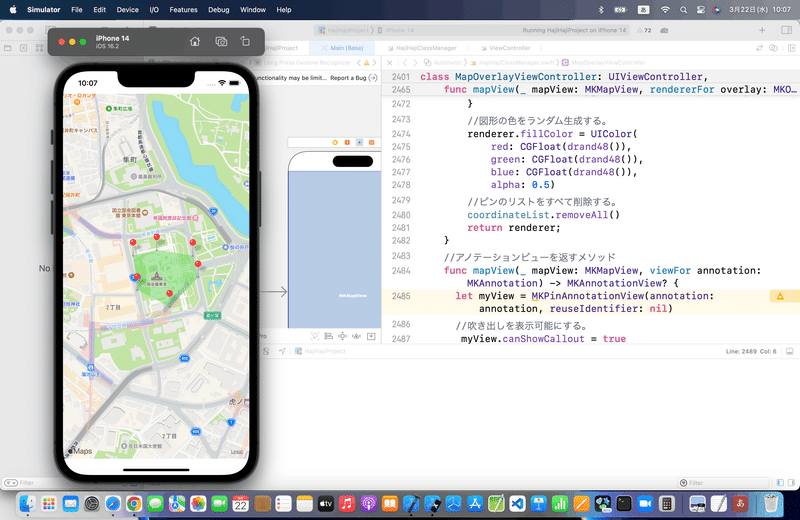

地図上でお絵描きできる〜〜〜〜〜🕺
空き地とかでどういう矩形になるかなんて時に使えるかもね💃
今回のコード(まとめ)
class MapOverlayViewController: UIViewController, MKMapViewDelegate {
@IBOutlet weak var myMapKitVIew: MKMapView!
let x = 139.744858
let y = 35.675888
let latitudeDelta = 0.01
let longitudeDelta = 0.01
//ピンのリスト
var coordinateList = [CLLocationCoordinate2D]()
//最初からあるメソッド
override func viewDidLoad() {
super.viewDidLoad()
//デリゲート先を自分に設定する。
myMapKitVIew.delegate = self
//中心座標
let center = CLLocationCoordinate2DMake(y, x)
//表示範囲
let span = MKCoordinateSpan(latitudeDelta: latitudeDelta, longitudeDelta: longitudeDelta)
//中心座標と表示範囲をマップに登録する。
let region = MKCoordinateRegion(center: center, span: span)
myMapKitVIew.setRegion(region, animated:true)
}
//マップビュー長押し時の呼び出しメソッド
@IBAction func myLongTap(_ sender: UILongPressGestureRecognizer) {
//マップビュー内のタップした位置を取得する。
let location:CGPoint = sender.location(in: myMapKitVIew)
if (sender.state == UIGestureRecognizer.State.ended){
//タップした位置を緯度、経度の座標に変換する。
let mapPoint:CLLocationCoordinate2D = myMapKitVIew.convert(location, toCoordinateFrom: myMapKitVIew)
//ピンを作成してマップビューに追加する。
let annotation = MKPointAnnotation()
annotation.coordinate = CLLocationCoordinate2DMake(mapPoint.latitude, mapPoint.longitude)
myMapKitVIew.addAnnotation(annotation)
//追加したピンをリストに追加する。
coordinateList.append(CLLocationCoordinate2D(latitude: mapPoint.latitude, longitude: mapPoint.longitude))
}
}
//ピンタップ時の呼び出しメソッド
func mapView(_ mapView: MKMapView, didSelect view: MKAnnotationView) {
//ピンの数で場合分け
if(coordinateList.count == 1) {
//ピンを中心に半径100mの円をマップビューに追加する。
let overlay = MKCircle(center: CLLocationCoordinate2D(latitude:coordinateList[0].latitude, longitude: coordinateList[0].longitude), radius:100)
myMapKitVIew.addOverlay(overlay)
} else if(coordinateList.count == 2) {
//2点間の中心座標を求める。
let centerX = (coordinateList[0].longitude + coordinateList[1].longitude)/2
let centerY = (coordinateList[0].latitude + coordinateList[1].latitude)/2
//2点間の距離から円の半径を求める。
let aaa:CLLocation = CLLocation(latitude: coordinateList[0].latitude, longitude: coordinateList[0].longitude)
let bbb:CLLocation = CLLocation(latitude: coordinateList[1].latitude, longitude: coordinateList[1].longitude)
let radius = aaa.distance(from: bbb)/2
//2点間の直線を直径とした縁をマップビューに追加する。
let overlay = MKCircle(center: CLLocationCoordinate2D(latitude: centerY, longitude: centerX), radius:radius)
myMapKitVIew.addOverlay(overlay)
} else {
//ピンを頂点にした多角形をマップビューに追加する。
let overlay = MKPolygon(coordinates: &coordinateList, count: coordinateList.count)
myMapKitVIew.addOverlay(overlay)
}
}
//描画前の呼び出しメソッド
func mapView(_ mapView: MKMapView, rendererFor overlay: MKOverlay) -> MKOverlayRenderer {
//円と多角形の場合でインスタンスのクラスを分ける。
let renderer:MKOverlayPathRenderer
if overlay is MKCircle {
renderer = MKCircleRenderer(overlay:overlay)
} else {
renderer = MKPolygonRenderer(overlay:overlay)
}
//図形の色をランダム生成する。
renderer.fillColor = UIColor(
red: CGFloat(drand48()),
green: CGFloat(drand48()),
blue: CGFloat(drand48()),
alpha: 0.5)
//ピンのリストをすべて削除する。
coordinateList.removeAll()
return renderer;
}
//アノテーションビューを返すメソッド
func mapView(_ mapView: MKMapView, viewFor annotation: MKAnnotation) -> MKAnnotationView? {
let myView = MKPinAnnotationView(annotation: annotation, reuseIdentifier: nil)
//吹き出しを表示可能にする。
myView.canShowCallout = true
return myView
}
}
