arduino LEDテープ　プログラム

Arduino - LEDStrip effects for NeoPixel and FastLED

https://www.tweaking4all.com/hardware/arduino/adruino-led-strip-effects/#LEDStripEffectRainbowCycle

本当にありがたいサイト⇧

2022年9月14日

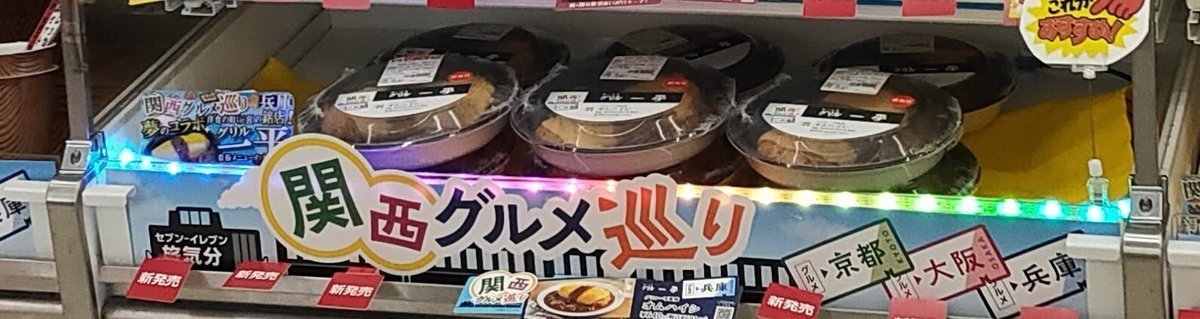

ピカピカ光らせてみた。
金色とか試してみたがレインボウが一番目立つね

配線図

 #include <Adafruit_NeoPixel.h>
 #define PIN 6
 #define NUM_LEDS 60
// Parameter 1 = number of pixels in strip
// Parameter 2 = pin number (most are valid)
// Parameter 3 = pixel type flags, add together as needed:
//   NEO_KHZ800  800 KHz bitstream (most NeoPixel products w/WS2812 LEDs)
//   NEO_KHZ400  400 KHz (classic 'v1' (not v2) FLORA pixels, WS2811 drivers)
//   NEO_GRB     Pixels are wired for GRB bitstream (most NeoPixel products)
//   NEO_RGB     Pixels are wired for RGB bitstream (v1 FLORA pixels, not v2)
Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUM_LEDS, PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  strip.begin();
  strip.show(); // Initialize all pixels to 'off'
}

// *** REPLACE FROM HERE ***
void loop() {
 // ---> here we call the effect function <---
}

// ---> here we define the effect function <---
// *** REPLACE TO HERE ***

void showStrip() {
  #ifdef ADAFRUIT_NEOPIXEL_H
   // NeoPixel
   strip.show();
  #endif  #ifndef ADAFRUIT_NEOPIXEL_H
   // FastLED
   FastLED.show();
  #endif }

void setPixel(int Pixel, byte red, byte green, byte blue) {
  #ifdef ADAFRUIT_NEOPIXEL_H
   // NeoPixel
   strip.setPixelColor(Pixel, strip.Color(red, green, blue));
  #endif  #ifndef ADAFRUIT_NEOPIXEL_H
   // FastLED
   leds[Pixel].r = red;
   leds[Pixel].g = green;
   leds[Pixel].b = blue;
  #endif }

void setAll(byte red, byte green, byte blue) {
  for(int i = 0; i < NUM_LEDS; i++ ) {
    setPixel(i, red, green, blue);
  }
  showStrip();
}

// *** REPLACE FROM HERE ***
void loop() {
 // ---> here we call the effect function <---
}

// ---> here we define the effect function <---
// *** REPLACE TO HERE ***

の所につけたい効果のコードを探してコピペするだけ。

レインボウなら

 #include <Adafruit_NeoPixel.h>
 #define PIN 6
 #define NUM_LEDS 60
// Parameter 1 = number of pixels in strip
// Parameter 2 = pin number (most are valid)
// Parameter 3 = pixel type flags, add together as needed:
//   NEO_KHZ800  800 KHz bitstream (most NeoPixel products w/WS2812 LEDs)
//   NEO_KHZ400  400 KHz (classic 'v1' (not v2) FLORA pixels, WS2811 drivers)
//   NEO_GRB     Pixels are wired for GRB bitstream (most NeoPixel products)
//   NEO_RGB     Pixels are wired for RGB bitstream (v1 FLORA pixels, not v2)
Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUM_LEDS, PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  strip.begin();
  strip.show(); // Initialize all pixels to 'off'
}

// *** REPLACE FROM HERE ***
void loop() {
  rainbowCycle(20);
}

void rainbowCycle(int SpeedDelay) {
  byte *c;
  uint16_t i, j;

  for(j=0; j<256*5; j++) { // 5 cycles of all colors on wheel
    for(i=0; i< NUM_LEDS; i++) {
      c=Wheel(((i * 256 / NUM_LEDS) + j) & 255);
      setPixel(i, *c, *(c+1), *(c+2));
    }
    showStrip();
    delay(SpeedDelay);
  }
}

byte * Wheel(byte WheelPos) {
  static byte c[3];

  if(WheelPos < 85) {
   c[0]=WheelPos * 3;
   c[1]=255 - WheelPos * 3;
   c[2]=0;
  } else if(WheelPos < 170) {
   WheelPos -= 85;
   c[0]=255 - WheelPos * 3;
   c[1]=0;
   c[2]=WheelPos * 3;
  } else {
   WheelPos -= 170;
   c[0]=0;
   c[1]=WheelPos * 3;
   c[2]=255 - WheelPos * 3;
  }

  return c;
}// *** REPLACE TO HERE ***

void showStrip() {
  #ifdef ADAFRUIT_NEOPIXEL_H
   // NeoPixel
   strip.show();
  #endif  #ifndef ADAFRUIT_NEOPIXEL_H
   // FastLED
   FastLED.show();
  #endif }

void setPixel(int Pixel, byte red, byte green, byte blue) {
  #ifdef ADAFRUIT_NEOPIXEL_H
   // NeoPixel
   strip.setPixelColor(Pixel, strip.Color(red, green, blue));
  #endif  #ifndef ADAFRUIT_NEOPIXEL_H
   // FastLED
   leds[Pixel].r = red;
   leds[Pixel].g = green;
   leds[Pixel].b = blue;
  #endif }

void setAll(byte red, byte green, byte blue) {
  for(inti = 0; i < NUM_LEDS; i++ ) {
    setPixel(i, red, green, blue);
  }
  showStrip();
}

 #
include <Adafruit_NeoPixel.h>
  #define PIN 6
  #define NUM_LEDS 60
// Parameter 1 = number of pixels in strip
// Parameter 2 = pin number (most are valid)
// Parameter 3 = pixel type flags, add together as needed:
//   NEO_KHZ800  800 KHz bitstream (most NeoPixel products w/WS2812 LEDs)
//   NEO_KHZ400  400 KHz (classic 'v1' (not v2) FLORA pixels, WS2811 drivers)
//   NEO_GRB     Pixels are wired for GRB bitstream (most NeoPixel products)
//   NEO_RGB     Pixels are wired for RGB bitstream (v1 FLORA pixels, not v2)
Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUM_LEDS, PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  strip.begin();
  strip.show(); // Initialize all pixels to 'off'
}

// *** REPLACE FROM HERE ***

void loop() {
  rainbowCycle(2);
}

void rainbowCycle(int SpeedDelay) {
  byte *c;
  uint16_t i, j;

  for(j=0; j<256*5; j++) { // 5 cycles of all colors on wheel
    for(i=0; i< NUM_LEDS; i++) {
      c=Wheel(((i * 256 / NUM_LEDS) + j) & 255);
      setPixel(i, *c, *(c+1), *(c+2));
    }
    showStrip();
    delay(SpeedDelay);
  }
}

byte * Wheel(byte WheelPos) {
  static byte c[3];

  if(WheelPos < 85) {
   c[0]=WheelPos * 3;
   c[1]=255 - WheelPos * 3;
   c[2]=0;
  } else if(WheelPos < 170) {
   WheelPos -= 85;
   c[0]=255 - WheelPos * 3;
   c[1]=0;
   c[2]=WheelPos * 3;
  } else {
   WheelPos -= 170;
   c[0]=0;
   c[1]=WheelPos * 3;
   c[2]=255 - WheelPos * 3;
  }

  return c;
}

// *** REPLACE TO HERE ***

void showStrip() {
  #ifdef ADAFRUIT_NEOPIXEL_H
   // NeoPixel
   strip.show();
  #endif  #ifndef ADAFRUIT_NEOPIXEL_H
   // FastLED
   FastLED.show();
  #endif }

void setPixel(int Pixel, byte red, byte green, byte blue) {
  #ifdef ADAFRUIT_NEOPIXEL_H
   // NeoPixel
   strip.setPixelColor(Pixel, strip.Color(red, green, blue));
  #endif  #ifndef ADAFRUIT_NEOPIXEL_H
   // FastLED
   leds[Pixel].r = red;
   leds[Pixel].g = green;
   leds[Pixel].b = blue;
  #endif }

void setAll(byte red, byte green, byte blue) {
  for(int i = 0; i < NUM_LEDS; i++ ) {
    setPixel(i, red, green, blue);
  }
  showStrip();
}

速度を変えるには

// *** REPLACE FROM HERE ***
void loop() {
  rainbowCycle(20);
}

void rainbowCycle(int SpeedDelay) {
  byte *c;
  uint16_t i, j;

speeddelay　を変えるだけ。２０は早すぎて動いてるのがわからない。
動いてる雰囲気を出すために2にする。

// *** REPLACE FROM HERE ***
void loop() {
  rainbowCycle(2);
}

void rainbowCycle(int SpeedDelay) {
  byte *c;
  uint16_t i, j;
